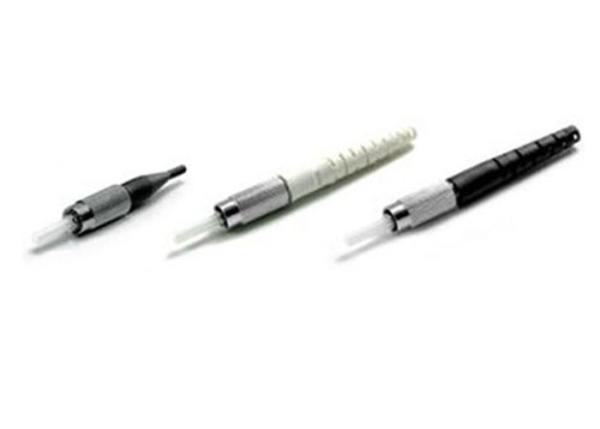

Durable DIN Fiber Connector 0 . 2dB Repeatability 1000 Mating Cycle

Name: Durable DIN Fiber Connector 0 2dB Repeatability 1000 Mating Cycle
Brand: Haiyu Optical
Price: 1 USD

Brand Name : Haiyu Optical

Model Number : HYG-FOC-DIN-010

Certification : CE, ISO9001, Rohs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, L/C

Supply Ability : 5000pcs per day

Delivery Time : 2-3 working days

Packaging Details : each packed in pe bag, 400-600pcs/carton

Product name : DIN Fiber Optic Connector

Connector type : DIN

Fiber type : Singlemode, Multimode

Durability : 1000 times

Operating temperature : -40°C ~ +80°C

Fiber cable type : 2.0mm 3.0mm cable

Repeatability : ≤ 0.2dB

Application : to make patch cord,Telecommunication

Contact Now

DIN Fiber Optic Connector Used in Fiber Optic Patch Cord

Specification:

Parameter		Unit	Index
			SM	MM
Insertion Loss		dB	≤0.3
Repeatability		dB	≤0.1
Interchangeability		dB	≤0.2
Return Loss	SM	dB	≥50	≥35
	MM	dB	≥35
Mating cycle		cycle	1000
Operating temperature			-40~+80

Features:

1) Superior qualified standard PC, APC, UPC, SPC polishing;
2) 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC); ≤0.3 (SPC);

3) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);

4) φ0.9mm, φ2.0mm, φ3.0mm fiber optic cable optional;

5) Single mode (9125) or multi mode (50125 or 62.5125) fiber available;

6) Good exchange ability and good durability;

7) Available in fiber bunch, ribbon fan-out, pigtail available;

8) Meets ISO9001, ROHS and Bell core GR 326-core standards;

Product application:

1) CATV, metro Test equipment

2) Telecommunication networks;

3) Local area networks (LAN);

4) Wide area networks (WAN);

5) Premise installations;

6) Data processing networks;

7) Video and military active device termination.

Durable DIN Fiber Connector 0 . 2dB Repeatability 1000 Mating Cycle
